Gantry – Multi Axis System

2-Axis Gantry Systems

2-axis gantry provides coordinated linear motion on two orthogonal axes (X & Y or X & Z) for positioning end-effectors or tooling. Ideal for applications such as high-speed pick-and-place, sorting, vision inspection, and conveyor loading/unloading.

Key Features

Layouts :

Preconfigured and custom options for X–Y or X–Z with servo & Step Servo Both Option.

Drive Options :

*Ball-screw: High force, precise positioning.

*Belt drive: Long travel, high speed.

Performance :

Low backlash transmission with repeatable end-of-stroke accuracy.

Modular Accessories :

Motors, adaptors, Drag chain, limit Sensors, Brake Motor , and Mounting clamps.

Applications :

Pick-and-place, Tray loading, PCB handling, Assembly, Laser marking, Inspection.

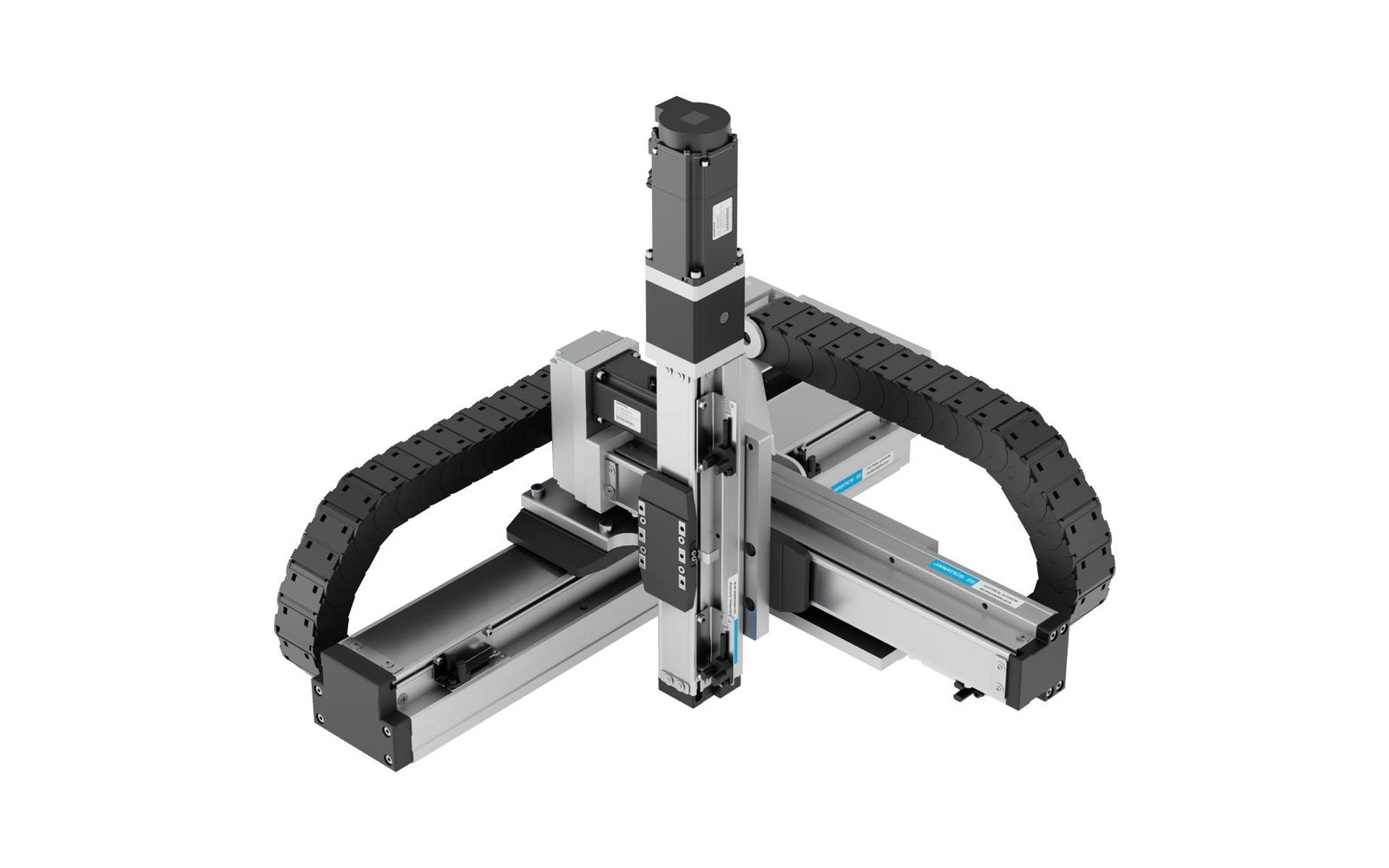

3-Axis Gantry Systems

Our 3-axis gantry systems offer complex automation solutions by combining X, Y, and Z motion for full 3 Axis positioning. These modular systems are perfect for robotic handling, dispensing, and multi-stage assembly operations, providing versatility and efficiency in various industrial applications.

Modular Accessories :

Motors, adaptors, Drag chain, limit Sensors, Brake Motor , and Mounting clamps.

Customizable :

Different actuator types can be combined per axis (e.g., belt X, ball-screw Y, rod-type Z).

Typical Configurations :

Rigid profiles with ball-screw or Belt drive on X/Y and high-speed Z with servo & Step Servo Both Option

Gantry Robot :

Long-travel belt drives on X with precision ball-screw Y/Z for effective payload control.

Applications :

3D dispensing, soldering gantry, Cartesian robot, Automated assembly cells gantry.
