WP2-Elbow Connector

1. Union Elbow

WP2 Union Elbow is a 90° bend union used for connecting two similar sizes of tube. In the air pressure line where the tube has to be bent for the requirement, this elbow fitting can be used. Easily the tube can be inserted or removed on both sides. Applicable sizes of Outer Diameter of the tubes are metric series (mm) 4, 6, 8, 10, 12, 14, 16 sizes.

1. Union Elbow Reducer

WP2 Union elbow reducer is a 90° bend union used for connecting two various sizes of tube. Applicable sizes of Outer Diameter of the tubes are metric series (mm) 8 / 12 size.

1. Male Elbow

WP2 Male Elbow is a 90° bend fitting, Hexagon shape Metal housing connected with elbow shaped plastic housing, used for connecting airline. Male thread on one side and Provision for fitting the tube in Plastic housing side. This will be in L Shape. In the air pressure line where the tube has to be bent for the requirement, this elbow fitting can be used. After mounting on the pneumatic element, the plastic part can be rotated to position the tube connection as required. Easily the tube can be inserted or removed. Applicable sizes of Outer Diameter of the tubes are metric series (mm) 4, 6, 8, 10, 12, 14, 16 sizes. Available Male Thread M5 in Metric. BSPT (Taper Thread) R1/8, R1/4, R3/8, R1/2, R3/4, R1.

1. Extended Male Elbow

WP2 Extended Male Elbow is a 90° bend fitting, Extended length Hexagon shape Metal housing connected with elbow shaped plastic housing, used for connecting airline. Male thread on one side and Provision for fitting the tube in Plastic housing side. This will be in L Shape. In the air pressure line where the tube has to be bent for the requirement, this elbow fitting can be used. After mounting on the pneumatic element, the plastic part can be rotated to position the tube connection as required. Easily the tube can be inserted or removed. Applicable sizes of Outer Diameter of the tubes are metric series (mm) 4, 6, 8, 10, 12 sizes. Available Male Thread. BSPT (Taper Thread) R1/8, R1/4, R3/8, R1/2.

1. Female Elbow

WP2 Female Elbow is a 90° bend fitting, Hexagon shape Metal housing connected with elbow shaped plastic housing, used for connecting airline. Female thread on one side and Provision for fitting the tube in Plastic housing side. This will be in L Shape. In the air pressure line where the tube has to be bent for the requirement, this elbow fitting can be used. After mounting on the pneumatic element, the plastic part can be rotated to position the tube connection as required. Easily the tube can be inserted or removed. Applicable sizes of Outer Diameter of the tubes are metric series (mm) 6, 8, 14 sizes. Available Female Thread. BSPT (Taper Thread) R1/8, R1/4, R1/2.

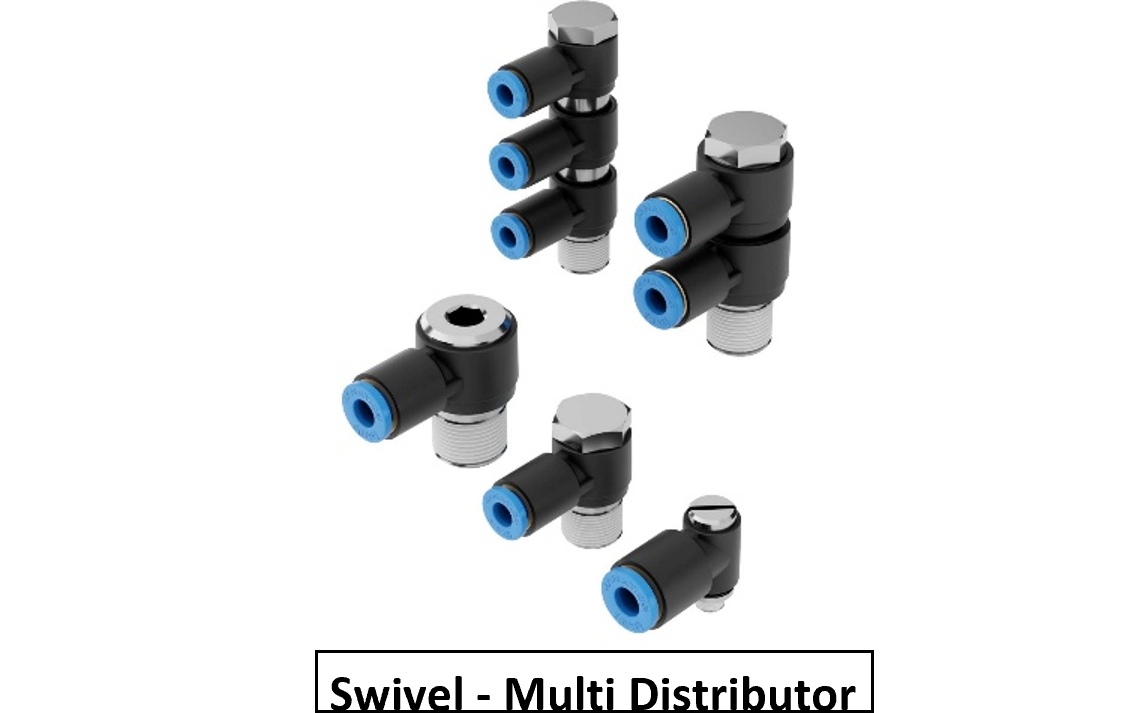

Swivel - Multi Distributor
