WS-Swivel (Elbow Type)
WS / WD - Series

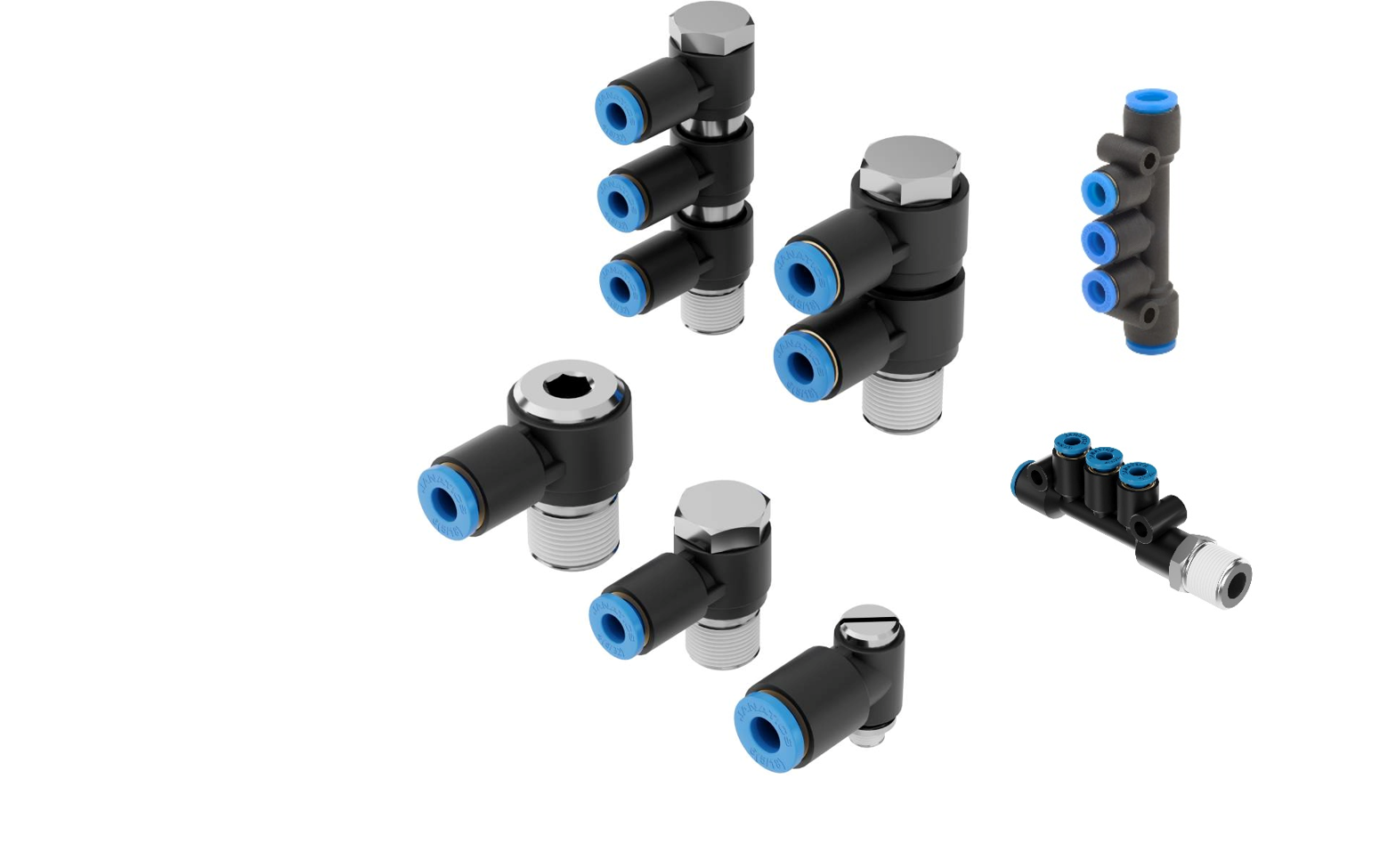

- WS - Series
- Single Swivel (Slotted Head)
Single Swivel (Slotted Head) Fitting is of “L” shaped connector after mounting on the pneumatic element, the plastic part can be rotated to position the tube connection as required. The metal part is inserted with plastic housing having provision for tube insertion. The metal part has a Slotted Head on the top for tightening. Applicable sizes of Outer Diameter of the tubes are metric series (mm) 4, 6 sizes. Available Male Thread M5 in Metric.
- Single Swivel (Hexagon Head)
Single Swivel (Hexagon Head) Fitting is of “L” shaped connector after mounting on the pneumatic element, the plastic part can be rotated to position the tube connection as required. The metal part is inserted with plastic housing having provision for tube insertion. The metal part has a Hexagon Head on the top for tightening. Applicable sizes of Outer Diameter of the tubes are metric series (mm) 4, 6, 8, 10, 12 sizes. Available Male Thread, BSPT (Taper Thread) R1/8, R1/4, R3/8, R1/2.
- Single Swivel (Internal Hexagon Socket)
Single Swivel (Internal Hexagonal Socket) Fitting is of “L” shaped connector after mounting on the pneumatic element, the plastic part can be rotated to position the tube connection as required. The metal part is inserted with plastic housing having provision for tube insertion. The metal part has an internal hexagonal socket on the top for tightening. Applicable sizes of Outer Diameter of the tubes are metric series (mm) 4, 6, 8, 10, 12 sizes. Available Male Thread, BSPT (Taper Thread) R1/8, R1/4, R3/8, R1/2.
- Double Swivel
Double Swivel Fitting is having two “L” shaped connector fixed in the metal housing. After mounting on the pneumatic element, the plastic part can be rotated to position the tube connection as required. The metal part is inserted with two plastic housings having provision for tube insertion. The metal part has a Hexagon Head on the top for tightening. With single inlet two outlets can be used. Applicable sizes of Outer Diameter of the tubes are metric series (mm) 4, 6, 8, 10, 12 sizes. Available Male Thread, BSPT (Taper Thread) R1/8, R1/4, R3/8, R1/2.
- Triple Swivel
Triple Swivel Fitting is having three “L” shaped connector fixed in the metal housing. After mounting on the pneumatic element, the plastic part can be rotated to position the tube connection as required. The metal part is inserted with three plastic housings having provision for tube insertion. The metal part has a Hexagon Head on the top for tightening. With single inlet three outlets can be used. Applicable sizes of Outer Diameter of the tubes are metric series (mm) 4, 6, 8, 10, 12 sizes. Available Male Thread, BSPT (Taper Thread) R1/8, R1/4, R3/8, R1/2.
